VEVORSKU: D0102HQTRG7
Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Cast Iron Body, 3 GPM & Max 90 PSI, Nitrile Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
Shipping calculated at checkout.
In stock (42)
$131.99
Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Cast Iron Body, 3 GPM & Max 90 PSI, Nitrile Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
$170.56
$131.99
/
Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Cast Iron Body, 3 GPM & Max 90 PSI, Nitrile Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
products.product.pickup_availability.unavailable
Still deciding?
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
Related categories
High-Quality MaterialsMade with premium materials for long-lasting use.
Easy to UseSimple design for quick setup and convenience.
Versatile & Multi-PurposePerfect for home, office, or on-the-go.
Satisfaction GuaranteeLove it or return it for a full refund.
Highlights:
1.Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 degrees Fahrenheit/66 degrees Celsius; Max. Pressure: 90 psi; Max. Flow Rate: 3 GPM; Max Head Lift: 196.85 ft/60 m±15%.
2.Sturdy & Leak-proof Construction: The diaphragm pump housing is made of cast iron material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
3.Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
4.Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
5.Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 degrees Fahrenheit/66 degrees Celsius; Max. Pressure: 90 psi; Max. Flow Rate: 3 GPM; Max Head Lift: 196.85 ft/60 m±15%.
2.Sturdy & Leak-proof Construction: The diaphragm pump housing is made of cast iron material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
3.Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
4.Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
5.Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Details:

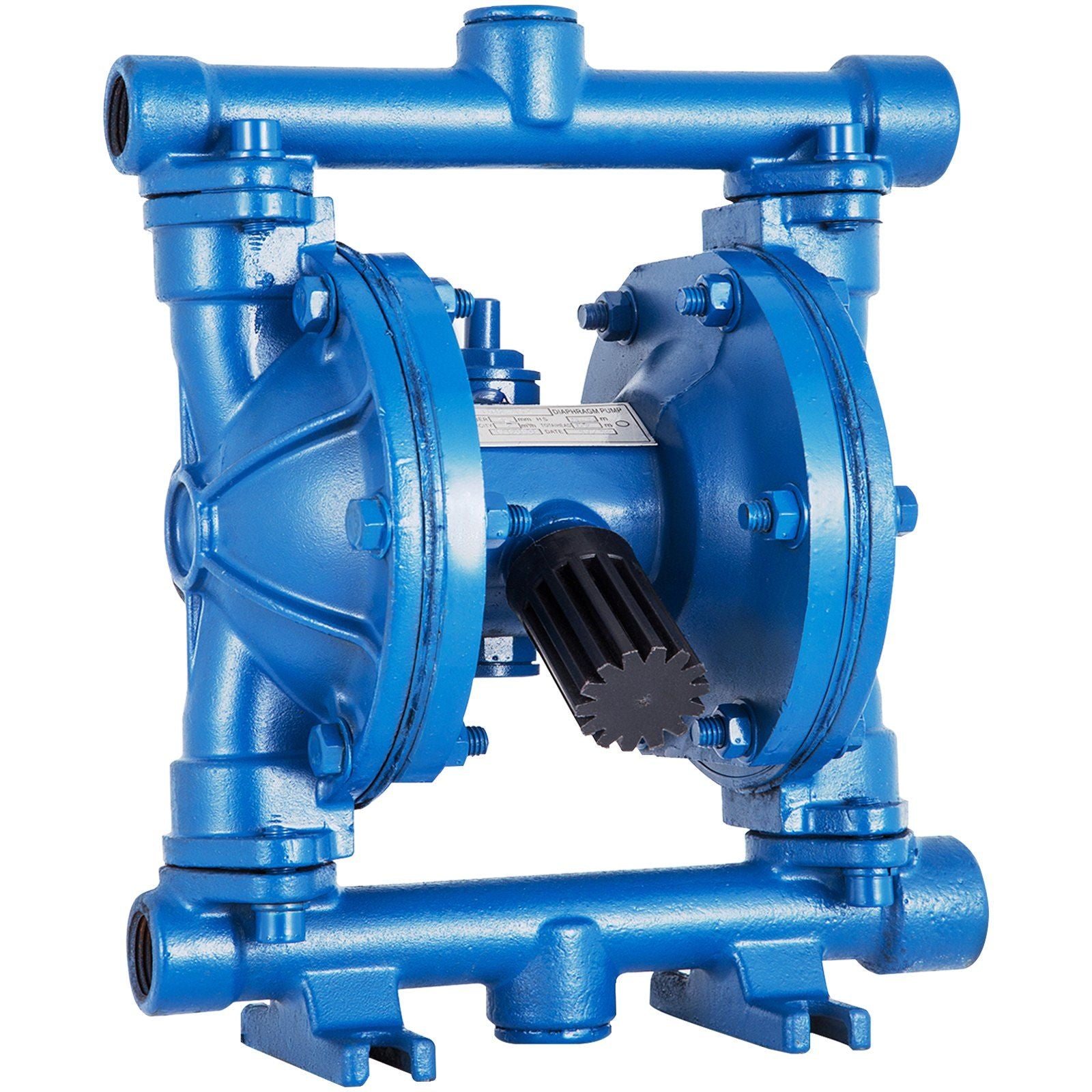

Air-Operated Double Diaphragm Pump Cast Iron Construction & Nitrile Diaphragm & 3 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted cast iron body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double Nitrile Diaphragms
Excellent Air-operated Performance
- Unique & Professional Designs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Sturdy Cast Iron Body
The shell of the air-operated diaphragm pump adopts cast iron construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 90 psi.
Nitrile Double Diaphragm
The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 3 GPM; Max Head Lift: 196.85 ft/60 m±15%.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An 'Unbalanced" air valve ensures no-stalling during operation.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
Specifications
- Model: QBK-15
- Color: Blue
- Body Material: Cast iron
- Inlet Port: 1/2 inch (12.7 mm)
- Outlet Port: 1/2 inch (12.7 mm)
- Air Inlet Size: 1/4 inch (6.35 mm)
- Gas Nozzle: 0.32 inch (8 mm)
- Max Flow Rate: 3 GPM
- Suction: 0-5 m (0-16.4 ft)
- Max Head: 196.85 ft/60 m±15%
- Max PSI: 90 psi
Package Content
- 1 x Air-Operated Double Diaphragm Pump
- 1 x Product Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Air-Operated Double Diaphragm Pump Cast Iron Construction & Nitrile Diaphragm & 3 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted cast iron body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double Nitrile Diaphragms
Excellent Air-operated Performance
- Unique & Professional Designs
Sturdy Cast Iron Body
The shell of the air-operated diaphragm pump adopts cast iron construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 90 psi.
Nitrile Double Diaphragm
The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 3 GPM; Max Head Lift: 196.85 ft/60 m±15%.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An 'Unbalanced" air valve ensures no-stalling during operation.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
Package Content
- 1 x Air-Operated Double Diaphragm Pump
- 1 x Product Manual
Specifications
- Model: QBK-15
- Color: Blue
- Body Material: Cast iron
- Inlet Port: 1/2 inch (12.7 mm)
- Outlet Port: 1/2 inch (12.7 mm)
- Air Inlet Size: 1/4 inch (6.35 mm)
- Gas Nozzle: 0.32 inch (8 mm)
- Max Flow Rate: 3 GPM
- Suction: 0-5 m (0-16.4 ft)
- Max Head: 196.85 ft/60 m±15%
- Max PSI: 90 psi
