VEVORSKU: D0102HQTRHY

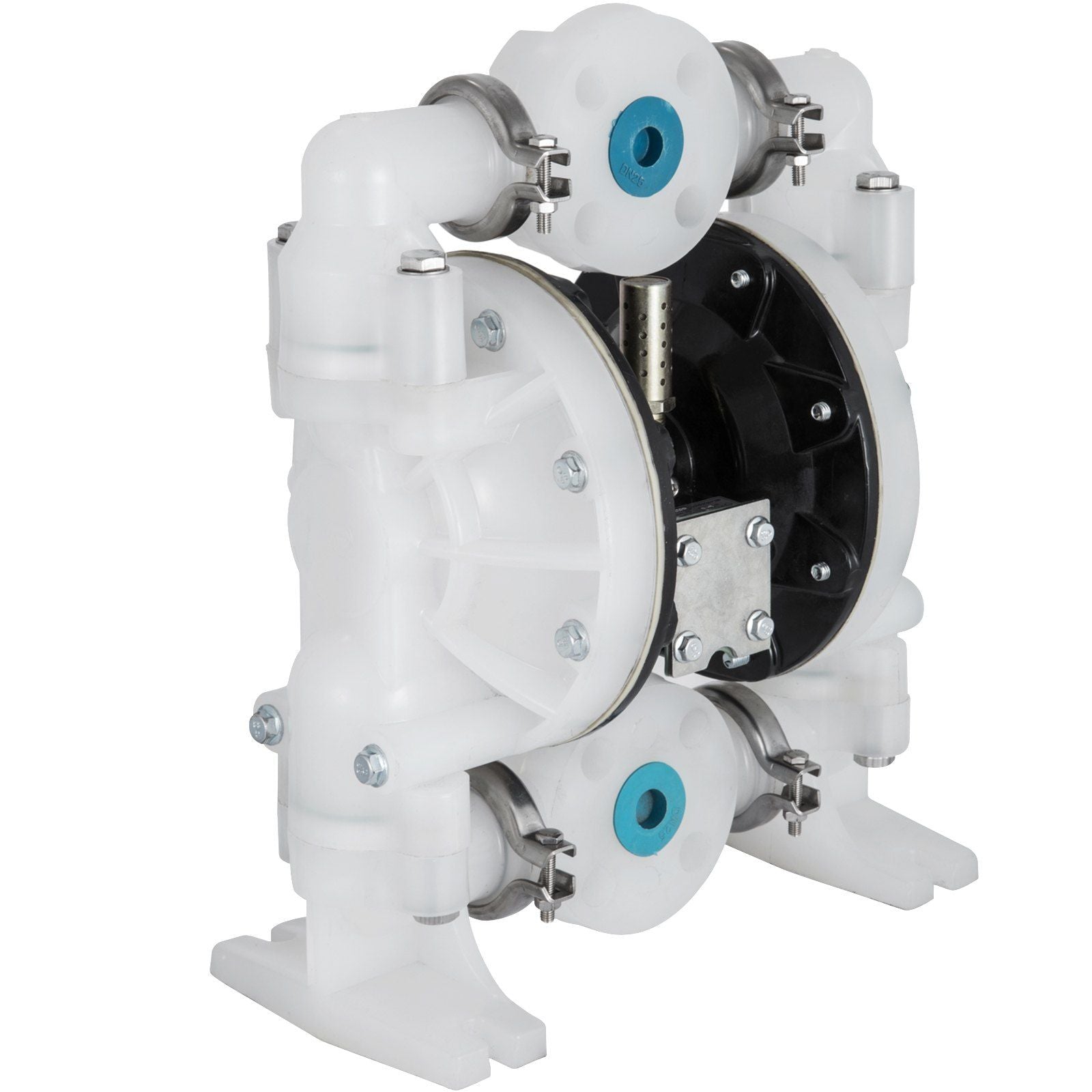

Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use
Shipping calculated at checkout.
Low Stock (7)
$277.99
Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use
$360.09
$277.99
/
Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use
Still deciding?
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
Related categories
High-Quality MaterialsMade with premium materials for long-lasting use.
Easy to UseSimple design for quick setup and convenience.
Versatile & Multi-PurposePerfect for home, office, or on-the-go.
Satisfaction GuaranteeLove it or return it for a full refund.
Highlights:
1.Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 degrees Fahrenheit/66 degrees Celsius; Max. Pressure: 120 psi; Max. Flow Rate: 79.6 GPM; Max Head Lift: 275.6 ft/84 m.
2.Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
3.Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
4.Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
5.Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 degrees Fahrenheit/66 degrees Celsius; Max. Pressure: 120 psi; Max. Flow Rate: 79.6 GPM; Max Head Lift: 275.6 ft/84 m.
2.Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
3.Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
4.Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
5.Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Details:
Air-Operated Double Diaphragm Pump
Polypropylene Construction & PTFE Diaphragm & 79.6 GPM Flow Rate
Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
- Premium Double PTFE Diaphragms
- Sturdy & Leak-proof Construction
- Excellent Air-operated Performance
- Unique & Professional Designs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Sturdy Polypropylene Body
The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 79.6 GPM; Max Head Lift: 275.6 ft/84 m.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An 'Unbalanced" air valve ensures no-stalling during operation.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
Specifications
- Model: QBY4-25PP
- Type: Double diaphragm
- Body Material: Polypropylene
- Inlet Port: 1 inch (25 mm)
- Outlet Port: 1 inch (25 mm)
- Air Inlet Size: 1/2 inch (12.7 mm)
- Max Flow Rate: 79.2 GPM
- Suction: 0-5 m (0-16.4 ft)
- Max Suspended Solids: 3 mm (1/8 inch)
- Max Head: 84 m (275.59 ft)
- Max PSI: 120 psi
- Self-Priming Dry: 3 m (10 ft)
- Self-Priming Wet: 4.6 m (15 ft)
Package Content
- 1 x Air-Operated Double Diaphragm Pump QBY4-25PP
- 1 x Product Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Air-Operated Double Diaphragm Pump
Polypropylene Construction & PTFE Diaphragm & 79.6 GPM Flow Rate
Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
- Premium Double PTFE Diaphragms
- Sturdy & Leak-proof Construction
- Excellent Air-operated Performance
- Unique & Professional Designs
Sturdy Polypropylene Body
The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 79.6 GPM; Max Head Lift: 275.6 ft/84 m.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An 'Unbalanced" air valve ensures no-stalling during operation.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
Package Content
- 1 x Air-Operated Double Diaphragm Pump QBY4-25PP
- 1 x Product Manual
Specifications
- Model: QBY4-25PP
- Type: Double diaphragm
- Body Material: Polypropylene
- Inlet Port: 1 inch (25 mm)
- Outlet Port: 1 inch (25 mm)
- Air Inlet Size: 1/2 inch (12.7 mm)
- Max Flow Rate: 79.2 GPM
- Suction: 0-5 m (0-16.4 ft)
- Max Suspended Solids: 3 mm (1/8 inch)
- Max Head: 84 m (275.59 ft)
- Max PSI: 120 psi
- Self-Priming Dry: 3 m (10 ft)
- Self-Priming Wet: 4.6 m (15 ft)
